Structural Elements 120

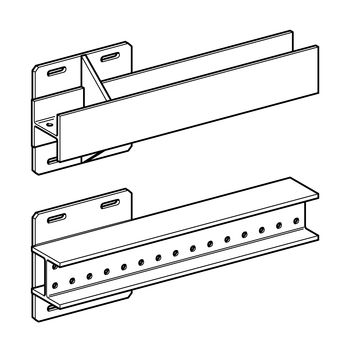

Joining Beam Bracket QKO 120

Application

The Joining Beam Bracket enables the attachment of beams on concrete or at other steel girders. The connection of further STF Beam elements is made by Beam Connectors.

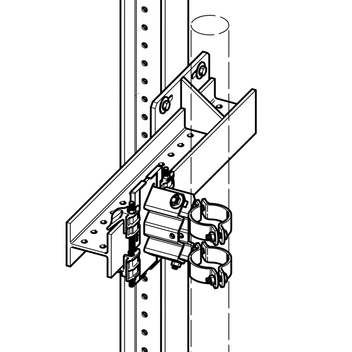

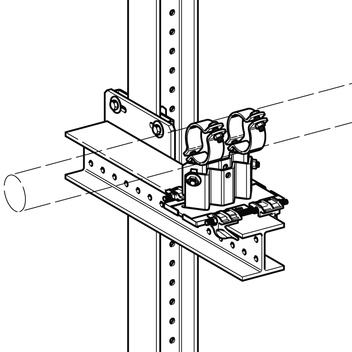

Installation

Depending on the situation, different options are recommended:

a)
Fixation to concrete by means of 4 heavy duty anchors M12 or M16.
b)
Frictional connection to steel beams with Assembly Set 5P M12 S (for flange width 80 - 120 mm).
c)
Interlocking connection to TKO 100 or 120 by means of Bracket Plates
FV 100/120.

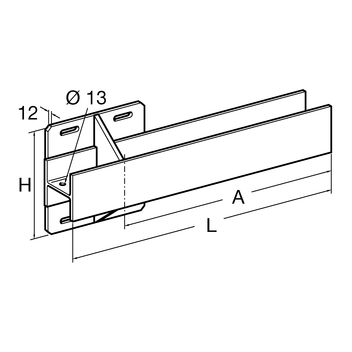

Technical Data

Type
Dimensions of base plate
H x H
[mm]
Length of beam section
A / L
[mm]
Slots in base plate for
QKO 120 and QKO 120q x 600 220 x 220 600/700 M12
QKO 120 and QKO 120q x 1000 220 x 220 1000/1100 M12

Configuration:
Base plate and support flange welded to an IPB 120 beam section
Material:
Steel, hot-dipped galvanised

Approvals / Compliance

CE mark (Declaration of performance see www.sikla.com/service/downloads)

Joining Beam Bracket QKO DoP A624 PDF | 36.8 KB

TypeW
[kg]
Quantity
[pack]
Part
number
QKO 120 x 60023.21 193228
QKO 120 x 100033.71 193235

QKO 120q x 60022.41 193242
QKO 120q x 100033.61 193259
