End Connectors and Fastening
End Support STA F 160-100-E

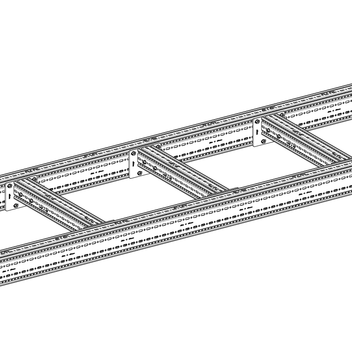

Application
Plug-in component designed to create an end plate at the open end of a Beam Section TP F 100/160.

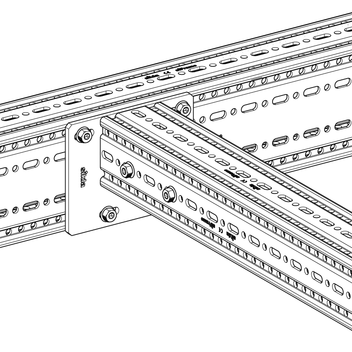

Installation
For the connection to Beam Section TP F 100/160 (flange side 160) 4 Self Forming Screws FLS F are necessary. The Beam Section TP F 100 connected to the End Support STA F 160-100-E has to be screwed with 4 Self Forming Screws FLS F. On each of the broader sides 2 Self Forming Screws FLS F are necessary. Fixing to walls and ceilings with suitable wall anchors M10.
Technical Data

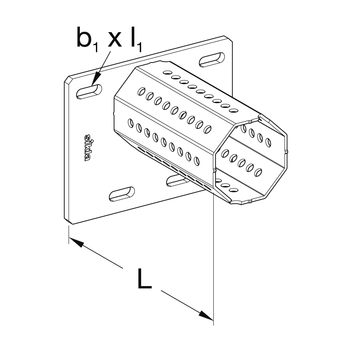

| Type | Dimensions of base plate [mm] | L [mm] | b1 x l1 [mm] |
|---|---|---|---|
| STA F 160-100-E | 160 x 200 | 180 | 11 x 20 |
| configuration: | Plate welded with to Octagon F 100 |
| material: | Steel, HCP |
Approvals / Conformity
CE mark (Declaration of performance see www.sikla.co.uk/downloads)
