Section Attachment Accessories

Floor Grating Kit GRB

Application

Kit for professional connection of GRP/FRP or open mesh flooring onto a base frame made from siFramo F80 or F100 section. Suitable for grating up to 50 mm Bearing Bar depth and bar spacing between minimum 10 mm and maximum 40 mm.

Scope of delivery

1 Kit comprising: 

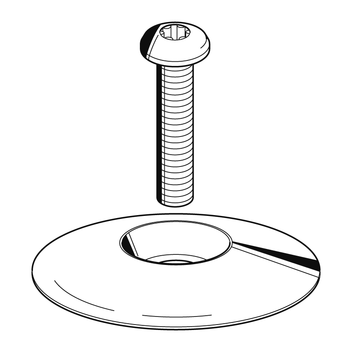

4 x Floor Disk FBT
4 x Self-forming Flange Screw M10 x 60

Installation

Place at least 4 no off Floor Disks per panel, preferably near the corners. Mark the appropriate round holes on the siFramo section by using a colour marker. Remove the panel and pre-drill the marked holes slightly using an FLS screw (192512). Put the grating panel back onto the frame and fix the Floor Disks by using the Flange Screws.

Technical Data

Diameter:
55 mm
Circular Hole:
10,3 mm for M10
Crossbar space:
minimum 10 mm
Bearing Bar Depth:
up to 40 mm
Screw:
Hexalobular Screw ISO 10664 - 50
M10 x 60
Material:
Steel, HCP
TypeW
[kg]
Qty.
[set]
Part
number
GRB0.031 116818
