Fastening to Concrete and Steel

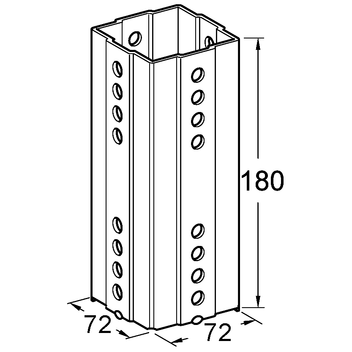

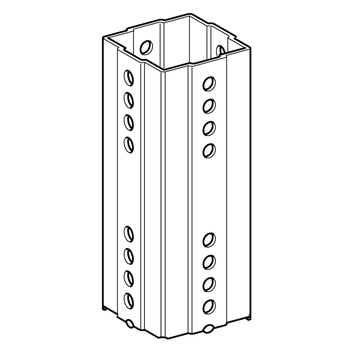

Welding Adapter ASA F 80 Square

Application

Welding plate with square insert to receive siFramo section. May be implemented into the structural steel design in anticipation of siFramo-frames or used in situ as a connection element when clamping is not an option but hot works are permitted.

Installation

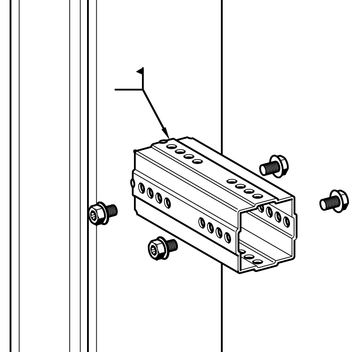

The welding plate of the ASA can be welded directly without previous treatment due to a corrosion-resistant weld-thru coating which is compatible with both the HDG surface of the siFramo section and the health and safety requirements of the welding process. Once the ASA adapter has been connected, the coating may also receive paint without previous treatment. The siFramo section must be connected to the Welding Adapter ASA with 4 x Self Forming Screw FLS.

Technical Data

Adm. load:
Cantilever:
max. 1.0 kNm
Crossbar:
see siFramo Installation Guidelines

Material:
Steel, HCP

Approvals / Compliance

CE mark (Declaration of performance see www.sikla.co.uk/service/downloads)

Welding Adapter ASA F DoP A428-A828 PDF | 72.1 KB

TypeW
[kg]
Quantity
[pack]
Part
number
ASA F 801.01 110020
